14|RELATED-SAMPLES \(t\)-TEST

Overview

• Research design
• Equations
• Hypothesis test
• Assumptions
• Confidence interval
• Learning checks

Research design

Independent-samples

• “Between-participants” design
• Two treated samples containing different people
• Individual differences contribute to variability

Related-samples

• Repeated-measures
  • “Within-participants” design
  • Two treatment conditions, but same individuals in both
  • Record two scores per individual (one per condition)
  • Individual differences cannot contribute to difference between groups


Related-samples

• Matched-subjects
  • Two samples of different people; each individual in sample A is “matched” on relevant variables with an individual in sample B
  • Uses same statistical procedures as repeated-measures
  • But requires twice as many participants as within-p’s design

Advantages & disadvantages

• Advantages of related-samples design
  • Requires fewer subjects (not true of matched subjects)
  • Able to study changes over time
  • Reduces or eliminates individual differences as a source of variability; therefore less variability in scores
• Disadvantages of repeated-measures design
  • Factors besides treatment may cause subject’s score to change during the time between measurements
  • Participation in first treatment may influence score in the second treatment (order effects)
  • Counterbalancing is a way to control time-related or order effects
  • Participants can drop out

Equations

Logic

Sample A	Sample B
54	43
67	57
38	39
46	41
42	36

Sample A	Sample B	D
54	43	-11
67	57	-10
38	39	1
46	41	-5
42	36	-6

Equations

\(t = \dfrac{\text{sample statistic} - \text{population parameter}}{\text{estimated standard error}}\)

Single sample:

\(t = \dfrac{M-\mu}{s_M}\)

Independent samples:

\(t = \dfrac{(M_1-M_2)-(\mu_1-\mu_2)}{s_{M_1-M_2}}\)

Related samples:

\(t = \dfrac{M_D-\mu_D}{s_{M_D}}\)

Calculating related-samples \(t\)

\(df = n-1\) (number of difference scores minus \(1\))

Difference scores:

\(D = X_B - X_A\)

Mean of difference scores:

\(M_D = \dfrac{\Sigma D}{n}\)

Standard error of difference scores:

\(S_{M_D} = \dfrac{s_D}{\sqrt{n}}\)

\(t\) statistic:

\(t = \dfrac{M_D - \mu_D}{s_{M_D}}\)

Hypothesis test

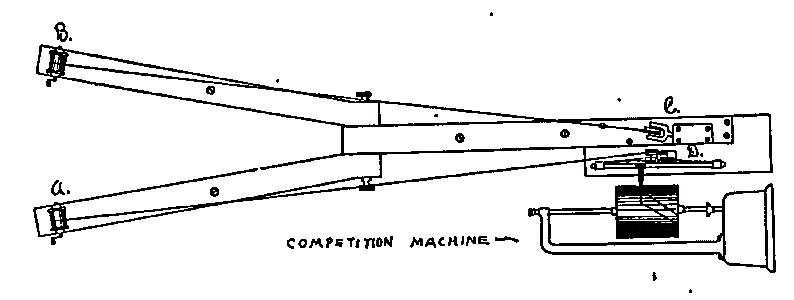

Triplett

• E.g. Norman Triplett (1898)
  • Performing alone/in competition

Triplett, N. (1898). The dynamogenic factors in pacemaking and competition. The American Journal of Psychology, 9(4), 507-533. https://doi.org/10.2307/1412188

Triplett data

As independent samples

Alone	\(X-M\)	\((X-M)^2\)
54	4.6	21.16
67	17.6	309.76
38	-11.4	129.96
46	-3.4	11.56
42	-7.4	54.76
\(M = 49.40\)		\(SS = 527.20\)
		\(s^2 = 131.80\)
		\(s = 11.48\)

Competition	\(X-M\)	\((X-M)^2\)
43	-0.2	0.04
57	13.8	190.44
39	-4.2	17.64
41	-2.2	4.84
36	-7.2	51.84
\(M = 43.20\)		\(SS = 264.80\)
		\(s^2 = 66.20\)
		\(s = 8.14\)

As independent samples

• Step 2: Decision criteria

\(\text{With } \alpha = .05, t_{critical} (8) = \pm 2.31\)

• Step 3: Calculate

\(df = N - 2 = 10 - 2 = 8\)

\(s^2_p = \dfrac{SS_1 + SS_2}{df_1 + df_2} = \dfrac{527.2 + 264.8}{4 + 4} = 99\)

\(s_{M_1-M_2} = \sqrt{\dfrac{s_p^2}{n_1}+\dfrac{s_p^2}{n_2}} = \sqrt{\dfrac{99}{5}+\dfrac{99}{5}} = 6.29\)

\(t = \dfrac{(M_1-M_2)-(\mu_1-\mu_2)}{s_{M_1-M_2}} = \dfrac{49.4 - 43.2}{6.29} = 0.99\)

As related samples

Participant	Alone	Comp	\(D\)	\(D-M_D\)	\((D-M_D)^2\)
Violet F.	54	43	-11	-4.8	23.04
Anna P.	67	57	-10	-3.8	14.44
Willie H.	38	39	1	7.2	51.84
Bessie V.	46	41	-5	1.2	1.44
Howard C.	42	36	-6	0.2	0.04

\(M_D = -6.2\)

\(SS = 90.8\)

\(s^2 = 22.7\)

\(s = 4.76\)

As related samples

\(\text{With } \alpha = .05, t_{critical} (4) = \pm 2.78\)

\(df = n-1 = 5 - 1 = 4\)

\(S_{M_D} = \dfrac{s_D}{\sqrt{n}} = \dfrac{4.76}{\sqrt{5}} = 2.13\)

\(t = \dfrac{M_D - \mu_D}{s_{M_D}} = \dfrac{-6.2}{2.13} = -2.91\)

Effect size

• Step 4b: Effect size
  • If the result was significant
  • Cohen’s \(d\) for related-samples \(t\)-test:

\[\begin{align} \text{Estimated Cohen's } d &= \dfrac{\text{mean of difference scores}}{\text{SD of difference scores}} \\ &= \dfrac{M_D}{s_D} \\ &= \dfrac{-6.2}{4.76} = -1.3 \end{align}\]

Report results

When performing in competition, children completed the race faster on average \((M = 43.2\); \(SD = 8.14)\) than when performing alone \((M = 49.4\); \(SD = 11.48)\). A related-samples found the difference to be statistically significant; \(t(4) =\) \(-2.91\), \(p <.05\), \(d = 1.30\).

Assumptions

1. Observations within each treatment condition must be independent
2. Population distribution of difference scores is normally distributed
   • With relatively large samples (n > 30) this assumption can be ignored

Confidence interval

• Independent-samples

\[\begin{align} (\mu_1-\mu_2) &= (M_1-M_2) \pm t * s_{M_1-M_2} \\ &= (43.2 - 49.4) \pm 2.31 * 6.29 \\ &= -20.71, 8.31 \end{align}\]

• Related-samples

\[\begin{align} \mu_D &= M_D \pm t * s_{M_D} \\ &= -6.2 \pm 2.78 * 2.13 \\ &= -12.12, -0.28 \end{align}\]

import { addCIPlot } from "../ojs/confidence-interval.qmd"

chart = {
  d3.select("#ci-independent")
    .call(addCIPlot, {test_type: "independent",
                      point_estimate: -6.2,
                      standard_deviation: Math.round(Math.sqrt(99)*100)/100,
                      n: 10,
                      ci: 95,
                      disable_controls: true})
}

chart2 = {
  d3.select("#ci-related")
    .call(addCIPlot, {test_type: "related",
                      point_estimate: -6.2,
                      standard_deviation: 4.76,
                      n: 5,
                      ci: 95,
                      disable_controls: true})
}

Learning checks

1. Think of a research question which would require…
   • A single-sample \(t\)-test
   • An independent-samples \(t\)-test
   • A related-samples \(t\)-test
2. What does it mean if the value of the \(t\) statistic is near \(0\) for:
   • A single-sample \(t\)-test?
   • An independent-samples \(t\)-test?
   • A related-samples \(t\)-test?
